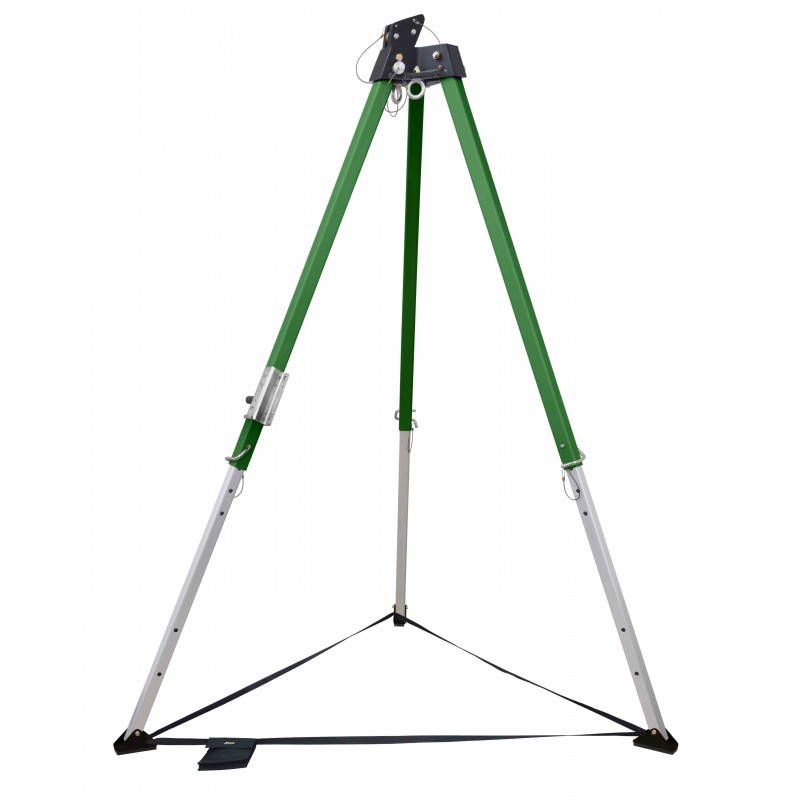

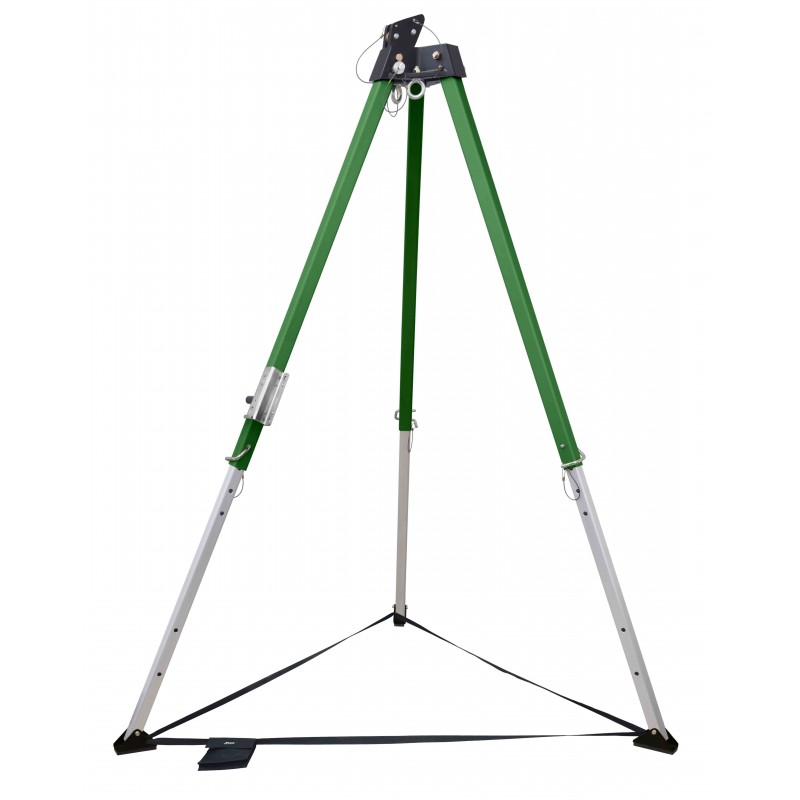

Tripod

7 ft. Tripod maxi

For access in confined spaces

Adjustable height: from 1.15 m to 2.15 m

Wheelbase: from 1.08 m to 1.62 m

Weight: 14.3 kg

Maximum Load Capacity : 500 kg under head / 250 kg on leg

Conforms to : EN795:2012 type B, Machinery Directive, EN 1808.

Can be used in ATEX atmosphere (zone 1).

– With two mounted pulleys at the head of the Tripod in the extension of the main leg for passing a cable

– Having two auxiliary eye bolts as attachment points.

– Aluminum alloy cast head, legs in aluminium.

– Steel support-shoes provided with rubber sole to increase friction and impart more stability.

– Strength of anchorage point greater than 12 kN

– Every Tripod is provided with inbuilt fixture for attaching our winches FA 60 003 20/20S and FA 60 003 30/30S.

– Every Tripod is provided with Tripod Bag
